Motorends
Home Up Machines Versiflex Power Transmission Self Contained Shafts Hand Pieces Motorends Adapters Accessories Tube Cleaners Stone Restoration





[Product Image]

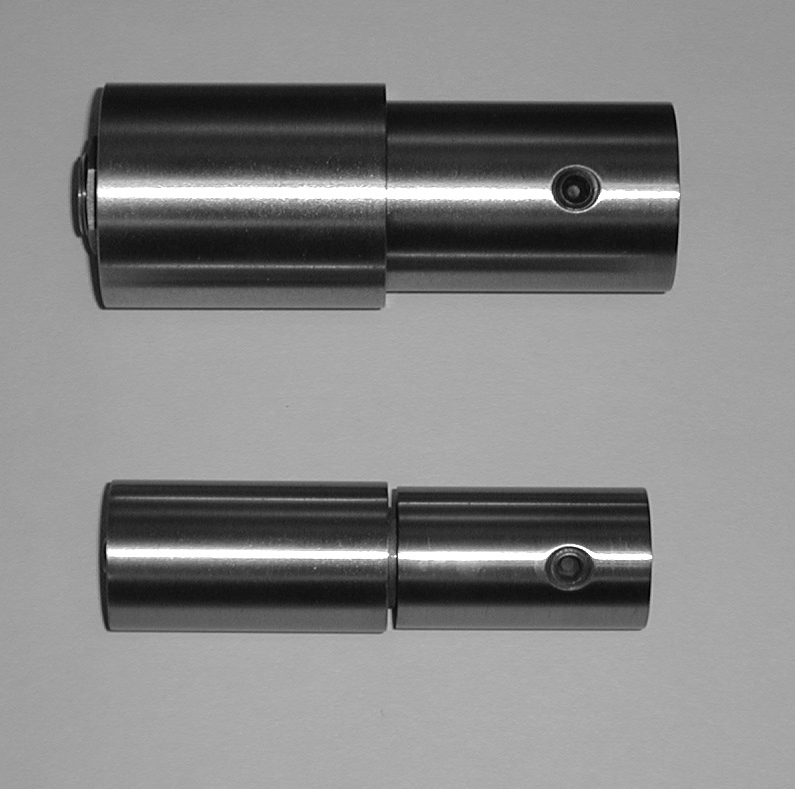

MOTORENDS


(Click for larger image).



FEATURES

Steel construction for durability

Double shielded maintenance-free ball bearings for cool operation and long life

Precise bore size to fit over motor spindle

Socket set screw locks onto motor spindle

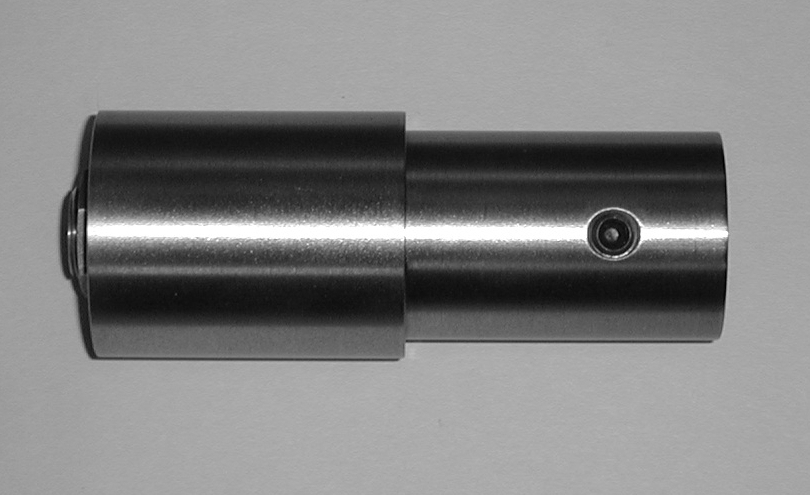

#8

Used on #8 & #9 & #10 Self-contained Flexible Shafts

Available in 1/2", 5/8, 3/4", 7/8 bore sizes

Optional keyway available on 5/8, , 7/8 bore sizes

Additional socket set screws available by special order

Other bore sizes available by special order

Female threaded bore available by special order

Male smooth shank available (for use in drill or lathe chuck) by special order

Male thread available by special order

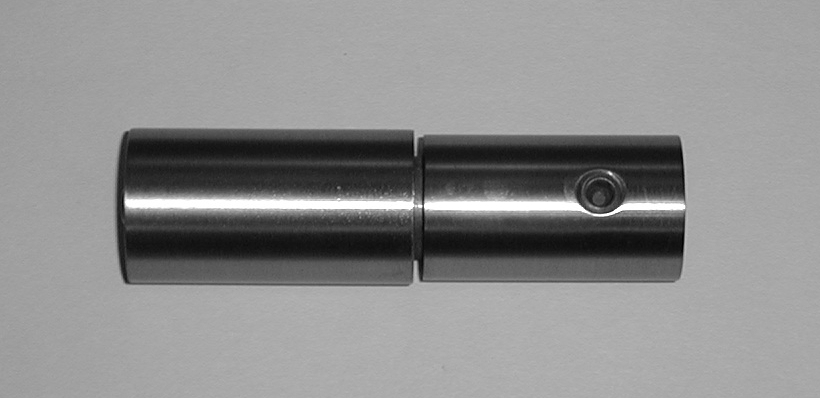

#2

Used on #2, #2S, #4, #4S, #5, #6, #6s, #7, #7s Self-contained Flexible Shafts

Available in 3/8, 1/2", 5/8, 3/4" bore sizes

Additional socket set screws available by special order

Other bore sizes available by special order

Female threaded bore available by special order

Male smooth shank available (for use in drill or lathe chuck) by special order

Male thread available by special order
