Torque Capacity
Home Up PTS PTB FC Custom Torque Capacity





DYNAMIC TORQUE CAPACITY AT GIVEN RADIUS OF CURVATURE

(LB-IN INPUT)

Core

Diameter

Minimum

Radius

Maximum

Torque

LB-IN

4in.

6in.

8in.

10in.

12in.

15in.

20in.

25in.

.188" 4.0" 58 4.2 8.2 10.3 11.6 12.4 13.2 14.2 15.2
.250" 4.0" 105 11.0 14.0 17.0 20.0 22.0 23.0 25.0 26.0
.313" 4.0" 210 21.0 25.0 34.0 39.0 42.0 45.0 48.0 52.0
.375" 4.0" 295 25.0 36.0 47.0 55.0 57.0 59.0 68.0 74.0
.438" 5.0" 465   42.0 57.0 71.0 81.0 89.0 100.0 105.0
.500" 5.5" 580   53.0 74.0 95.0 107.0 119.0 131.0 140.0
.625" 6.5" 1155     105.0 139.0 168.0 200.0 221.0

242.0

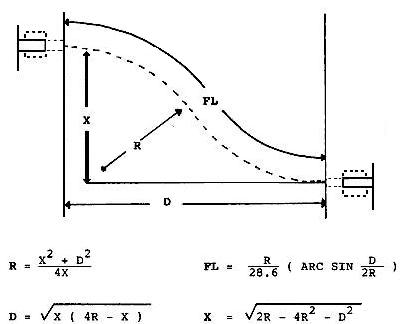

RADIUS OF CURVATURE & FLEXIBLE SHAFT LENGTH IN PARALLEL OFFSET APPLICATIONS



X OFFSET
D DISTANCE BETWEEN END FITTINGS
R RADIUS
FL FLEXIBLE LENGTH BETWEEN END FITTINGS
